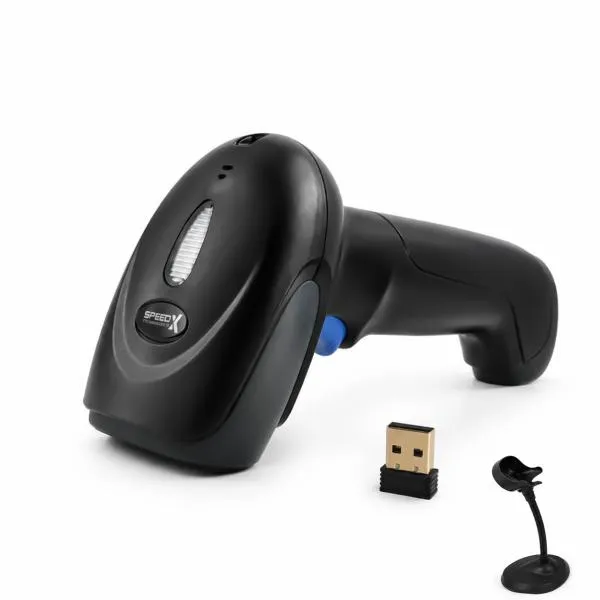

Speed-x 8700 2d Wireless 2.4ghz Barcode Scanner With Stand And Receiver

2D Wireless 2.4G Handheld Barcode Scanner
Scanner with Stand or reciver & charging cable.

Wireless Characteristics

Communication mode Real Time Mode/Cache mode/Inventory mode


Communication mode

2.4G?2.402 to 2.480GHz


Transmission range

2.4G?30m?In empty area?
Battery capacity 2000mAh (Lithium battery)
Charge Time from Empty to Full Charge 6H

Electrical Characteristics
Interface Supported USB HID KEYBOARD/USB VCP
Input Voltage DC 5V±5%
Current Max:120mA

Performance Characteristics
Sensor 640×480 CMOS
Scanning Angle Corner 180°
Elevation ± 55°
Deflection ± 55°
Field of view H 36°?V 27°
Min Resolution ?5mil
Min .PCS value ?30%UPC/EAN 13?13mil?
Decode Capability
1D?Code 128?Ean-13 ?Ean-8?UPC-E?UPC-A?ITF-25?Interleaved 2 0f 5??Code39?Code93?Codabar

2D?QR Code? Data Matrix ?PDF417


Environmental Characteristics

Temperature operation?-20?~+60?
storage?-40?~+80?
Humidity operation?5%~95%?no condensation?

Physical Characteristics
Dimensions 90mm x67mm x 168mm(L*W*H)
Weight 130g
Indicator Beeper, LED
