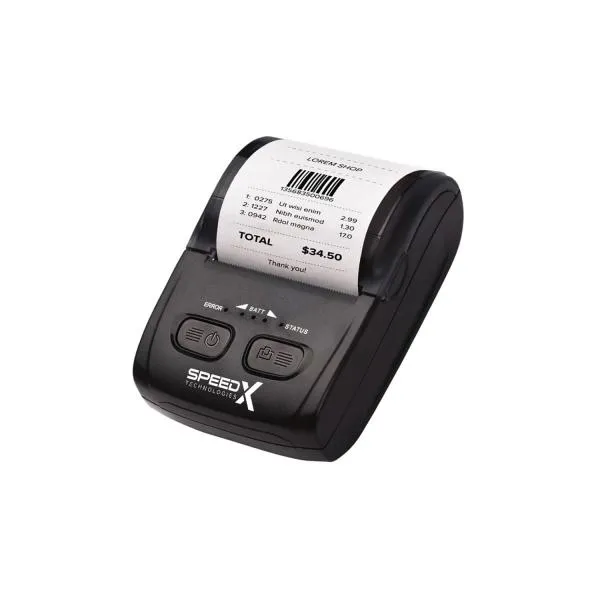

Speed-x Bt500m Mini Portable Bluetooth+usb Printer 58mm

Item Parameter








Print parameter

Printing Method Thermal Line
Effective Printing Width 58mm
Resolution 384 dots/line（8dots/mm，203dpi）
Printing Speed 90 mm/S(MAX)
Interface USB+Bluetooth
Line spacing 3.75mm（Can adjust line spacing by command）
Line No.
Font A:32 character /Line

Font B:42 character/Line


Character Size ANK character，Font A：1.5×3.0mm（12×24 dots）
Font B：1.1×2.1mm（9×17 dots）








Bar code character

Extended character set PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code
1D.Bar code：UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

2D.Bar code：QRCODE


Graphics printing Graphics printing Supports bitmap download and print (support each bitmap size Max.8K, download up to 5pcs)


Power saving Mode

Smart power saving Support
Variable speed printing Support
Consumption Support
Dormancy Support
Detection Sensor Lack of paper detection
Indicator Power Display Support
Charge Indicator Support
Lack of paper Support
Paper Type Thermal
Width 57.5±0.5mm
thickness ?0.12mm
Diameter ?40mm
Feed Easy（Clamshell feed）
Print command Commands ESC/POS
Power Type Rechargeable Lithium polymer battery
Capacity 1500mAh/7.4V,
Charger 5.0V/1A
Buffer Input 4KB
NV Flash 40KB
Physical features Weight 200G
Dimension 112*79*48(MM)
Environment Operating Temp：5 ~ 45℃， Humidity：10 ~ 80%
Storage Temp：-10 ~ 50℃ ，Humidity：10 ~ 90%（No Dew）
Reliability Print head life 50KM（Printing Density?12.5）
Software Driver Android,IOS,Linux,Windows
